Hidden Source. Glare-Free Light.

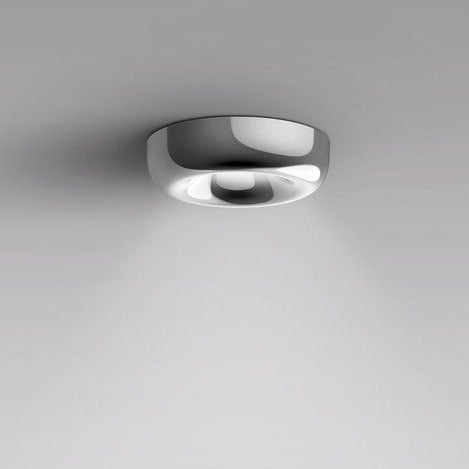

The Cavity Recessed is a semi-recessed downlight that cleverly uses the trim to conceal the light source. A shallow, curved aluminium body sits less than 3 cm proud of the surface, cradling the light source within so it's never directly visible. Instead of a reflector, the specially shaped body draws light outward and downward in a wide, powerful (dimmable) beam spread with no glare. Choose a glass diffuser for a broad, even wash, or a 46° spot lens (Small) / 60° spot lens (Large) for a more directed, focused beam. Winner of the 2019 German Design Award.

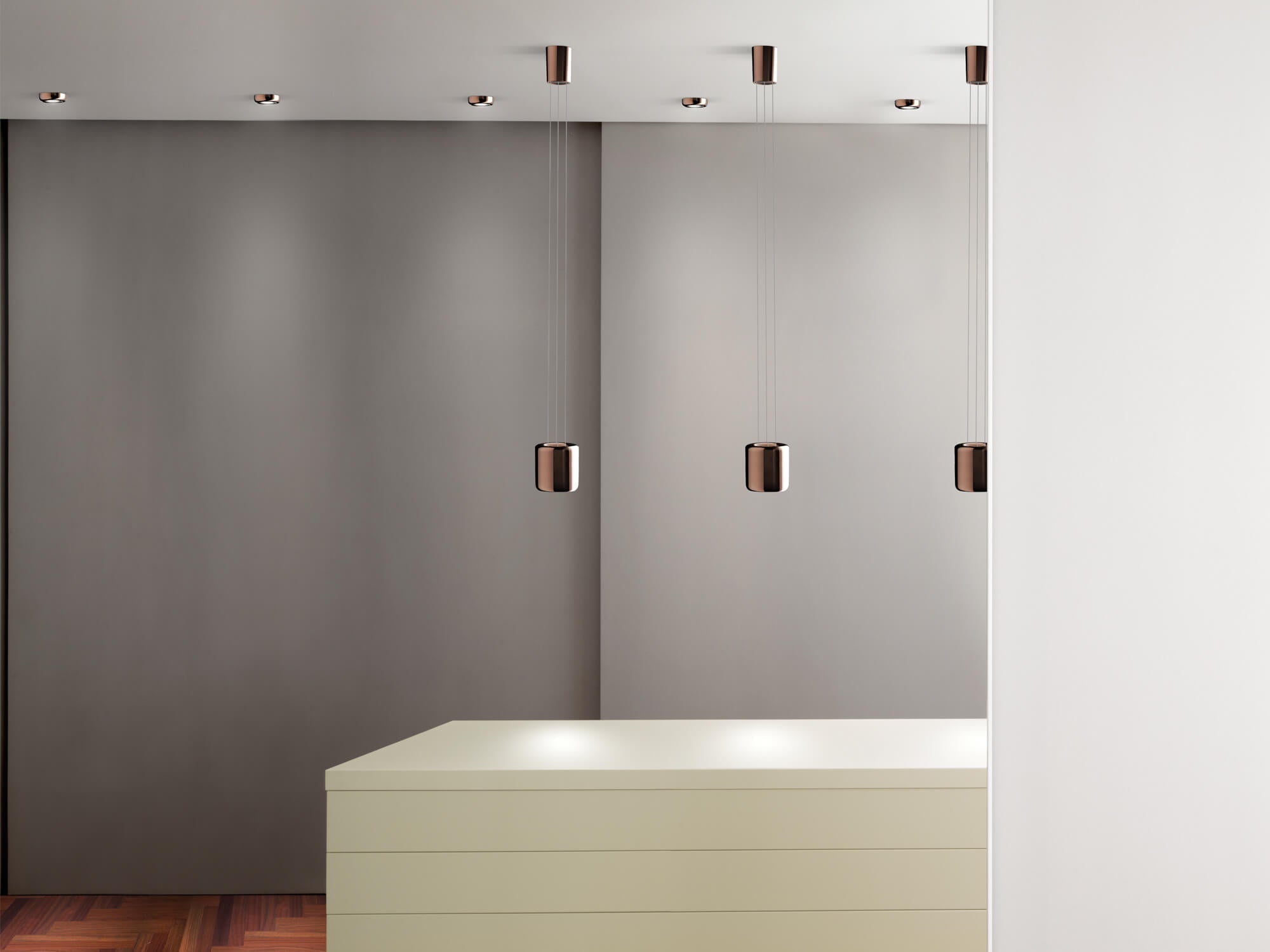

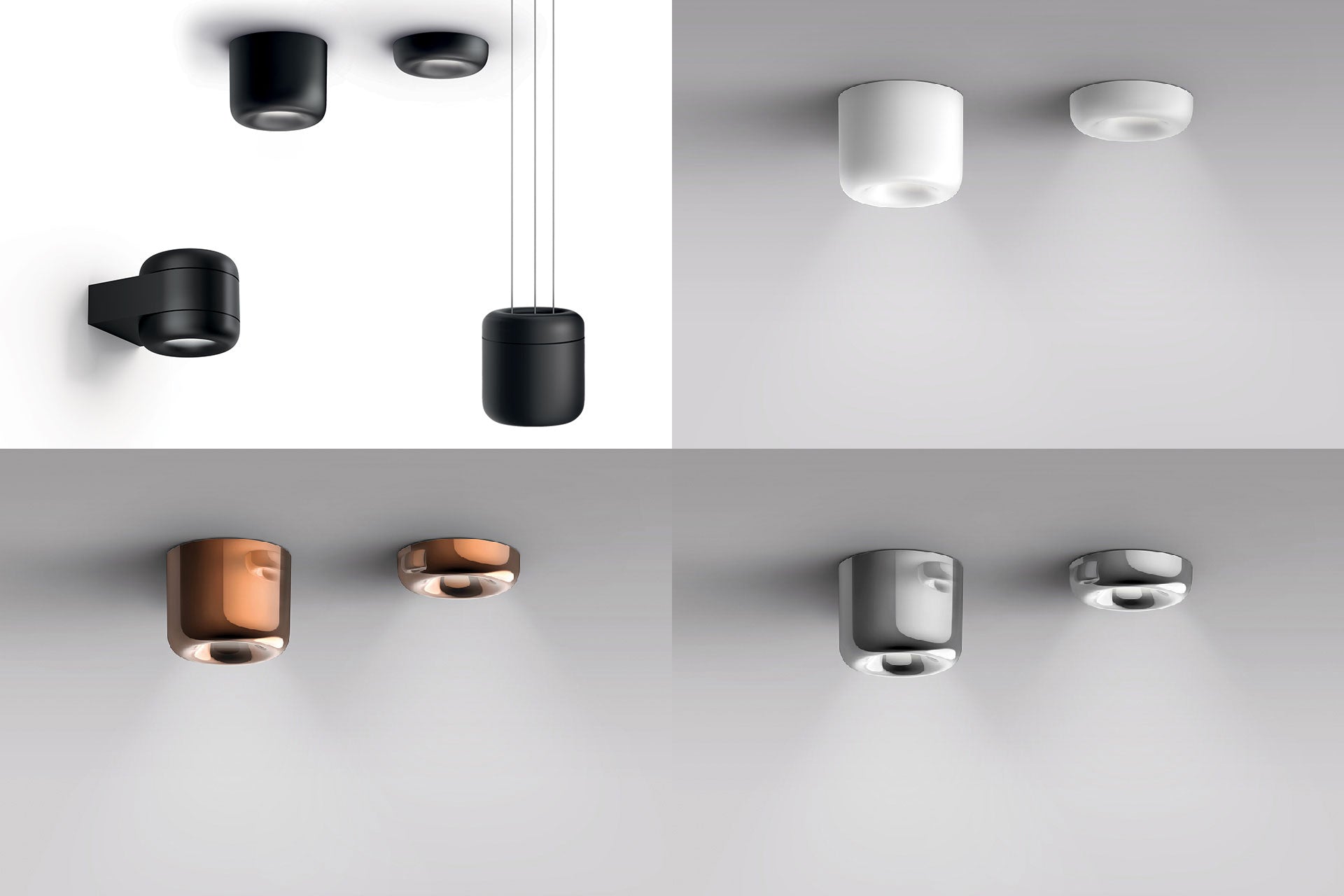

"CAVITY integrates into ceilings and rooms or sets accents — on its own, grouped together or lined up." — Serien Lighting

Worth Noting

• 2019 German Design Award Winner
• Two beam options: glass diffuser (broad, even) or spot lens — 46° (Small) / 60° (Large)
• Driver included
• Through-wiring supported
• Emergency light option available (Large only)
• Spring clip fixing for quick installation

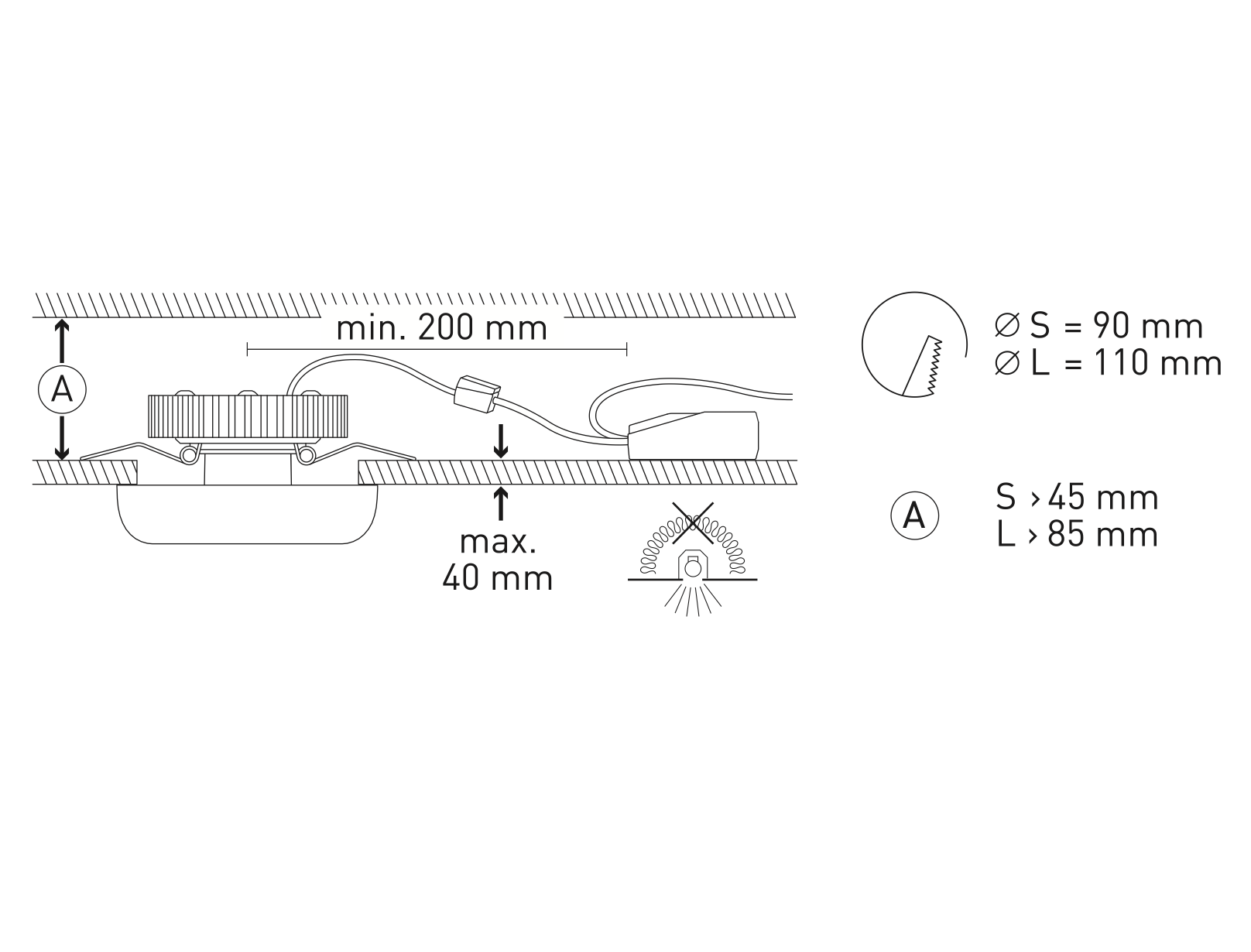

• Minimum ceiling void depth: 5 cm — additional depth may be required depending on wiring and installation
• Minimum 20 cm distance from internal fitting to the driver
• Maximum plasterboard depth: 40 mm
• DALI and Casambi available on request

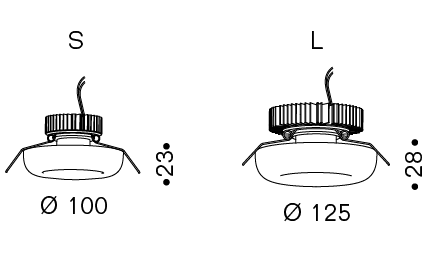

Dimensions

• Small: 2.3 H × 10 Ø cm
• Large: 2.8 H × 12.5 Ø cm

Weight

• Small: 0.2 kg
• Large: 0.4 kg

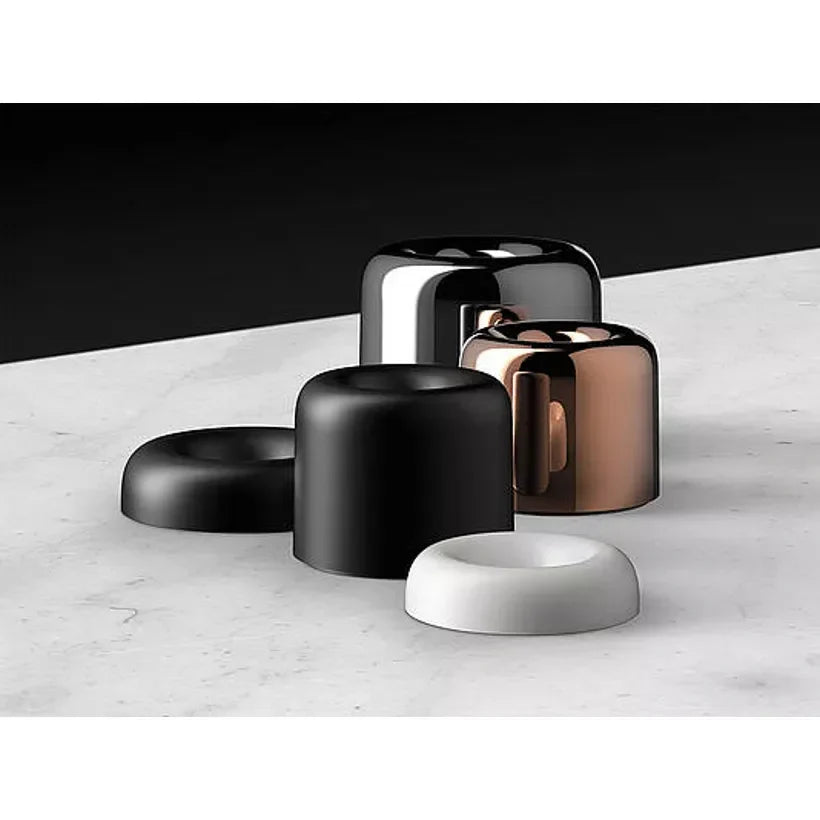

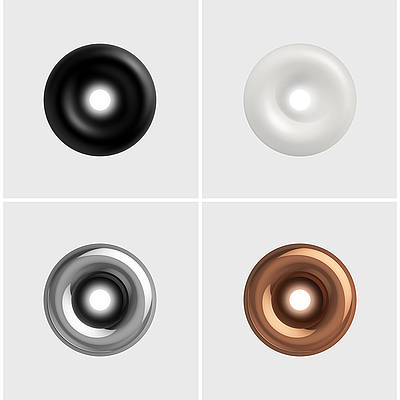

Finish

• Aluminium Gloss

Lamping

• LED, 12W (Small) / 20W (Large)
• 220–240V
• CRI >97, SDCM 2
• 2700K — 1,120 lm (Small) / 1,910 lm (Large)
• 3000K — 1,190 lm (Small) / 2,010 lm (Large)

IP Rating

• IP40

Control

• Triac Dim
  • DALI available on request
  • Casambi available on request
